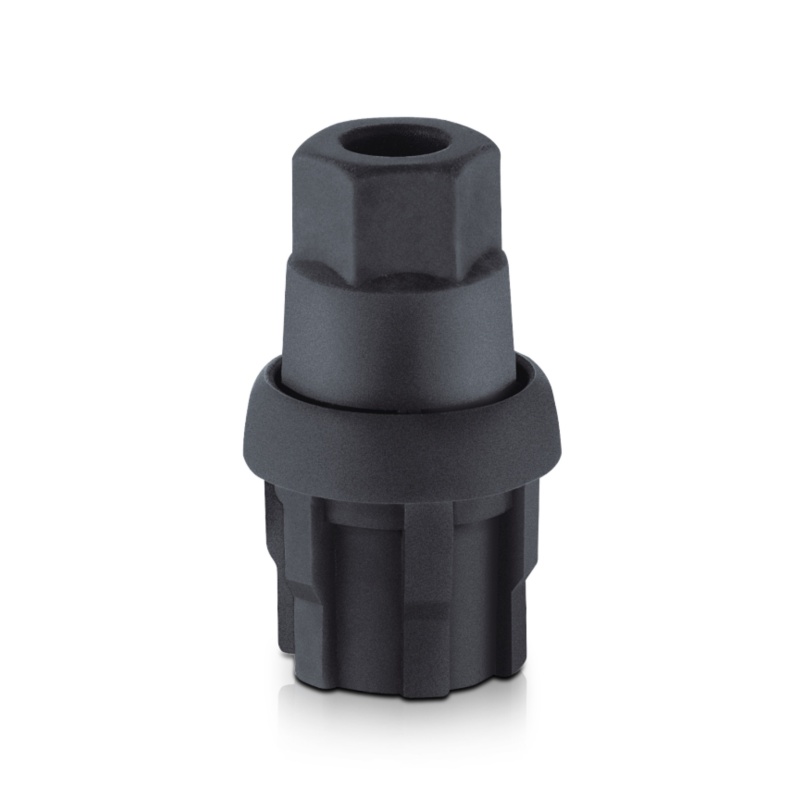

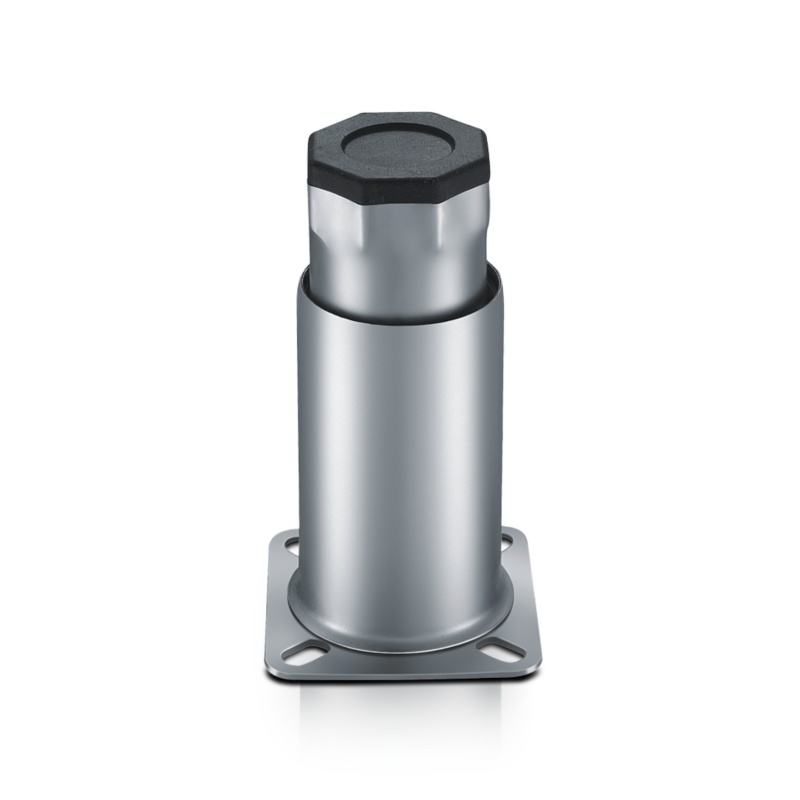

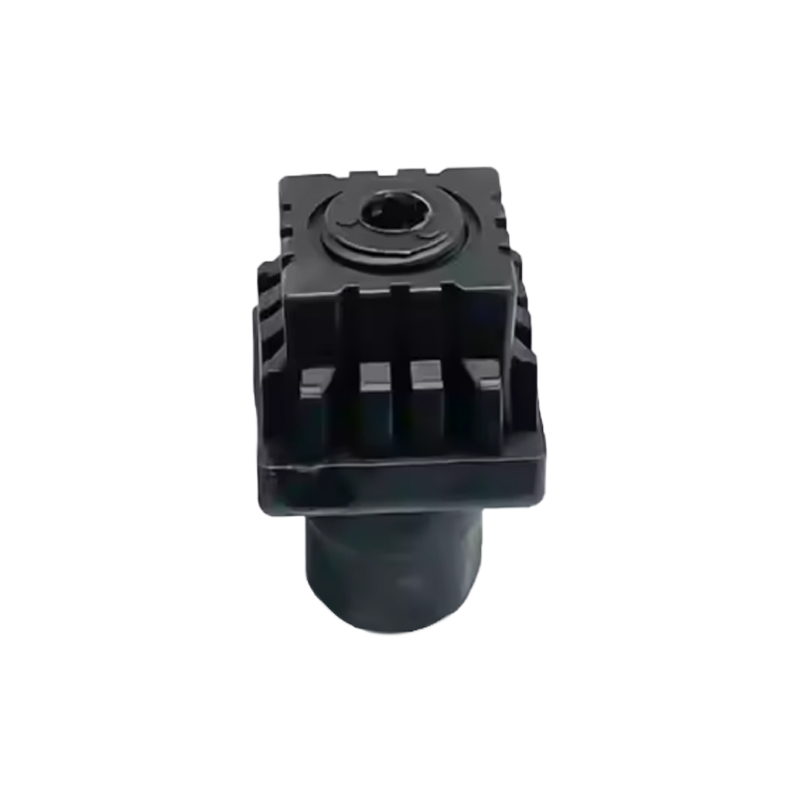

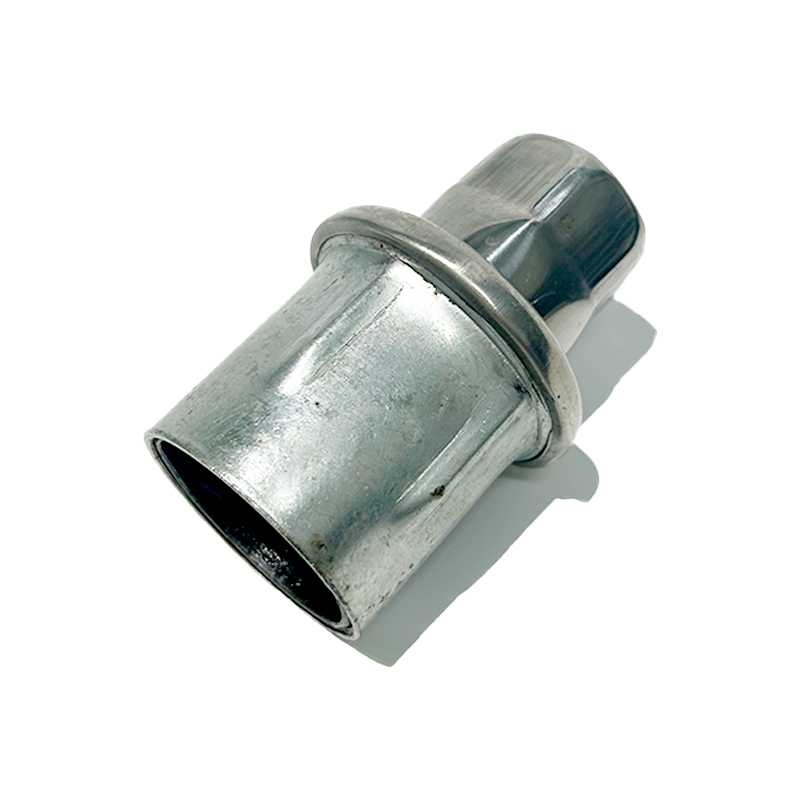

Bullet Feet for Commercial Equipment

Bullet Feet are one of the most-specified yet least-understood components in a commercial kitchen. They carry the entire loaded weight of refrigerators, ovens, worktables and shelving, set the working height of every station, and decide whether equipment stands stable on an uneven quarry-tile floor. Choosing them correctly at specification time avoids the two most common field failures: equipment that rocks during service, and floors scored or cracked by the wrong base material.

Start with the thread. The tapped hole or weld nut on the equipment base defines the stud: common sizes in our range are G1/2, M8 and M10, with custom pitches produced to drawing. Matching the thread exactly matters more than any other parameter — an adapter adds a failure point and reduces the effective load rating of the assembly. If the existing thread is unknown, send us a photo of the hole with a coin for scale, or ship the old foot to our Foshan factory; we gauge it and quote the equivalent or an improved version.

Next, size the load and the adjustment range. Divide the loaded equipment weight by the number of support points, then apply a safety margin for dynamic loads — doors slamming, pans dropped, equipment rolled across thresholds. The adjustment range should cover your floor’s worst unevenness plus any sanitation clearance required under the unit; too little travel and installers shim the foot with offcuts, which voids the load path; too much travel and the extended stud can introduce side-play under lateral force.

Finally, choose the base for the floor and the environment. Hard nylon or steel bases suit wash-down areas and heavy point loads; softer compounds protect polished tile and epoxy coatings from marking. In steam-heavy zones — dishwashing, sterilization — specify stainless bodies and studs so corrosion never seizes the adjustment thread. Because a single kitchen typically uses several foot families, we keep thread and base options aligned across the Bullet Feet range so facilities can standardize on one supplier and one spare-parts list.

As a China-based manufacturer and wholesale supplier, Foshan Simple Technology produces Bullet Feet in its own plant with MOQ from 100 pieces, OEM threads, heights and finishes to drawing, and export packing with full shipping documents. Distributors and wholesalers in North America, Europe, the Middle East and Southeast Asia use us as a repeatable source rather than a one-off vendor — send your model list and quantities and we reply within 24 hours.
